TDA1675A

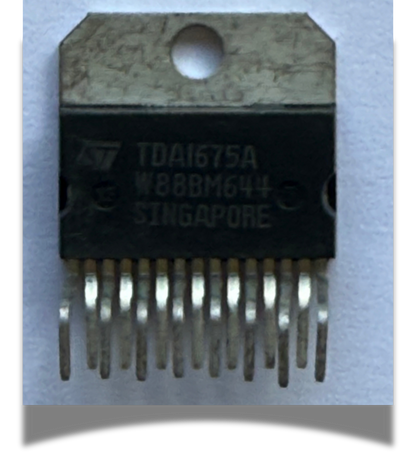

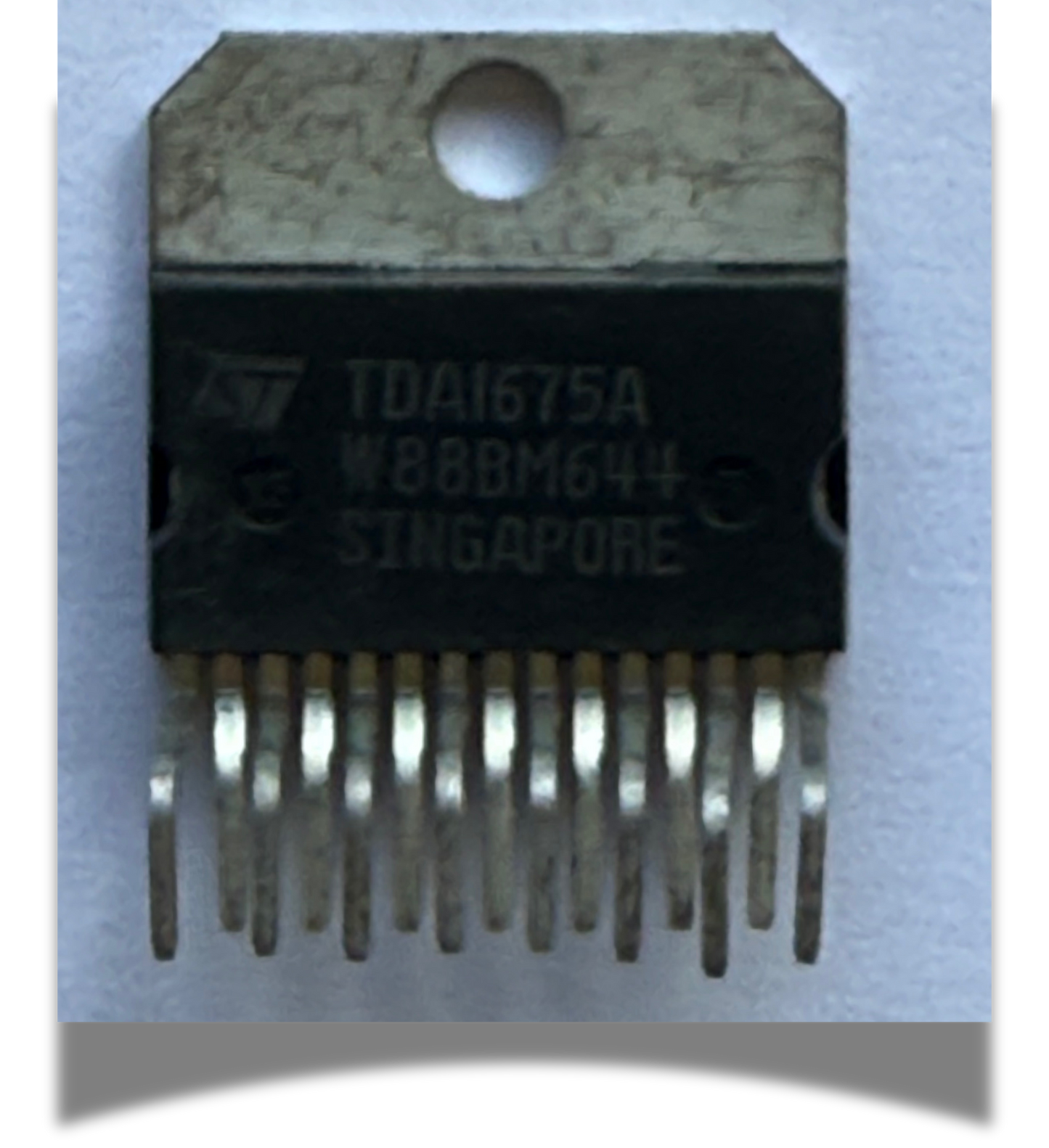

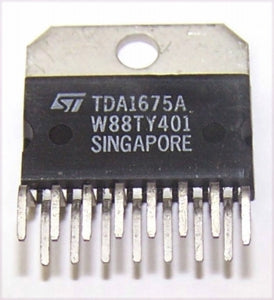

The TDA1675A is a monolithic integrated circuit in 15-lead Multiwatt® package. It is a full performance and very efficient vertical deflection circuit intended for direct drive of the yoke of 110o colour TV picture tubes. It offers a wide range of applications also in portable CTVs, B&W TVs, monitors and displays.

SYNCHRONISATION CIRCUIT
ESD PROTECTED
PRECISION OSCILLATOR AND RAMP GENERATOR
POWER OUTPUT AMPLIFIER WITH HIGH CURRENT CAPABILITY
FLYBACK GENERATOR
VOLTAGE REGULATOR
PRECISION BLANKING PULSE GENERATOR
THERMAL SHUT DOWN PROTECTION
CRT SCREEN PROTECTION CIRCUIT WHICH BLANKS THE BEAM CURRENT IN
THE EVENT OF LOSS OF VERTICAL DEFLECTION CURRENT
