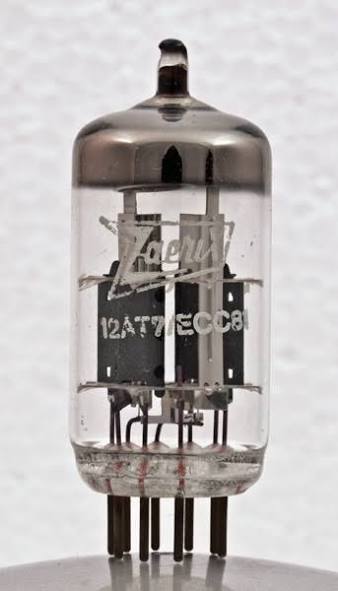

ECC81 (12AT7 or CV4024) Triode No boxes

Name: ECC81 (12AT7 or CV4024) Triode No boxes
Brand: The Old Stockroom
Price: 300.00 ZAR
Availability: InStock

R 300.00 ZAR

Sale Sold out

Shipping calculated at checkout.

41 in stock


NOTE: CAN'T MAKE OUT THE VENDORS 95% TESTED!! Key Specifications & Characteristics Type: Dual triode (two independent triodes in a single glass envelope) Gain Factor (μ): Approximately 50 to 60 (lower gain than an ECC83/12AX7 which has a gain of 100, and higher gain than an ECC82/12AU7 which has a gain of 17) Heater Filament: Center-tapped (6.3V at 300mA or 12.6V at 150mA) Common Equivalents: 12AT7, CV4024, E81CC, 6201, B152 [1, 2, 3, 4, 5, 6, 7] Common Applications Guitar & Hi-Fi Amplifiers: Frequently used as a phase inverter (phase splitter) in push-pull power amplifier stages, in reverb driver circuits, or as a preamp tube when more clean headroom is needed. [1, 2, 3] Radio & VHF Equipment: Originally developed in the early 1950s for Very High Frequency (VHF) applications, such as FM tuners and early television frequency converters. [1, 2]
